PostSubject: What is this?   Fri Sep 03, 2010 10:03 am

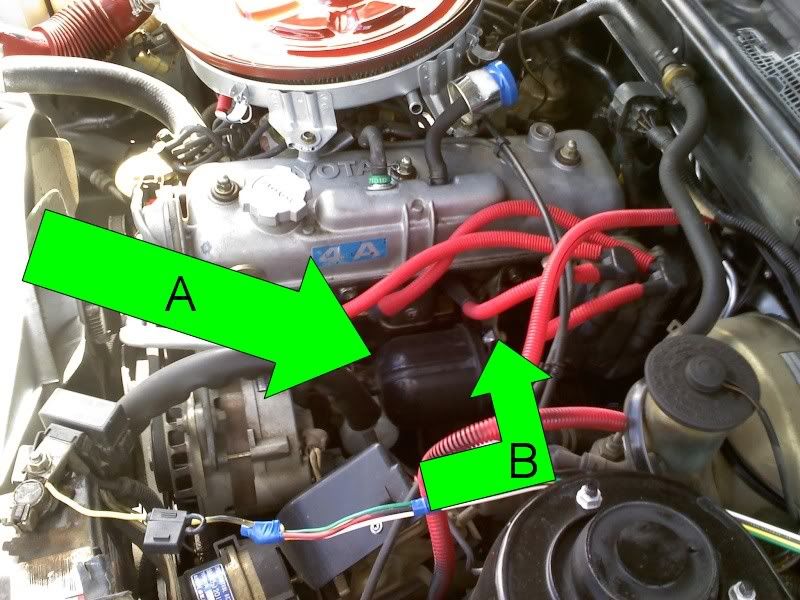

I got the pic from Lawnie420's build thread. What is this part (arrow A) and what does it do? My car didn't come with it. It seems to be attached to the block with this triangle shaped bracket (arrow B) which I removed from my car because it held nothing but a ground wire which I relocated.
I kept the bracket just in case though!
Back to top Go down
Lawnie420

avatar

Car : 1984 ae86 zenki sr5 coupe 4ac
Posts : 279
Join date : 2010-07-22
Age : 32
Location : Grand Junction Colorado

PostSubject: Re: What is this?   Fri Sep 03, 2010 10:25 am

Im not sure either it has a breather tube coming from it when i bought the car it was already on it just havent taken it off im wondering what it is myself
Back to top Go down
Http://juggaloclownz.the-up.com
NP75
Admin


Car : AE86
Posts : 1116
Join date : 2009-04-12
Location : Nor Cal

PostSubject: Re: What is this?   Fri Sep 03, 2010 11:20 am

California cars do not have that part, it's a Federal spec emissions part (49 state). It's an air filter / inlet for the air suction system for the catalytic converter if memory serves.
Back to top Go down
http://4ac-powered.forumotion.com
justinparcher

avatar

Car : 1986 Corolla SR5 Coupe
Posts : 101
Join date : 2010-06-20
Age : 29
Location : Clackamas, Oregon, USA

PostSubject: Re: What is this?   Fri Sep 03, 2010 4:59 pm

NP75 wrote:
California cars do not have that part, it's a Federal spec emissions part (49 state). It's an air filter / inlet for the air suction system for the catalytic converter if memory serves.

Yes, it is. The canister must have a one-way valve or something.. I installed a regular cat after I removed mine and it had that pipe, but no canister- it would blow exhaust out of it. The snorkel tube from the canister goes up behind the fan mounted to a bolt for the upper timing cover, allowing it to take in cool fresh air to aid the catalytic converter.
Back to top Go down
http://www.facebook.com/#!/JustinParcher
overdrive418

avatar

Car : 86 AE86 SR5 RWD
Posts : 298
Join date : 2010-06-28
Location : Florida

PostSubject: Re: What is this?   Fri Sep 03, 2010 5:13 pm

Ahhhh, ok, then I know what that tube coming from the cat is supposed to be connecthed to. Theres a small metal looking tube kinda floating in space down in there under the distributor.
Car runs fine without it so I'll probably ditch all that when I get new exhaust piping.
Florida has no emissions testing, yahoo!
Back to top Go down
Glock30

avatar

Car : 1984 Toyota Corolla Sport, 1989 Ford Bronco, 1968 F250
Posts : 745
Join date : 2009-04-20
Age : 36
Location : Los Angeles

PostSubject: Re: What is this?   Fri Sep 03, 2010 5:37 pm

overdrive418 wrote:
Ahhhh, ok, then I know what that tube coming from the cat is supposed to be connecthed to. Theres a small metal looking tube kinda floating in space down in there under the distributor.
Car runs fine without it so I'll probably ditch all that when I get new exhaust piping.
Florida has no emissions testing, yahoo!

Need to move to florida... Sad
Back to top Go down
http://www.redlinedaily.com
that1hatchi



Car : 1985 AE86
Posts : 310
Join date : 2009-12-30
Age : 25
Location : NC

PostSubject: Re: What is this?   Fri Sep 03, 2010 8:27 pm

my car must be from California then! mine didnt come with that LOL!
Back to top Go down
Lawnie420

avatar

Car : 1984 ae86 zenki sr5 coupe 4ac
Posts : 279
Join date : 2010-07-22
Age : 32
Location : Grand Junction Colorado

PostSubject: Re: What is this?   Sat Sep 04, 2010 3:42 am

Thanks for the clear up on it as i said i was wondering what it was for myself i never really thought to much about it i live in a city where emmissions arent required either would i be able to cut the tube off just below the chassis to help clean up the bay maybe even move it further down or completly off the car with no issues i still have stock everything
Back to top Go down
Http://juggaloclownz.the-up.com
resbitime

avatar

Car : 1983 corolla
Posts : 56
Join date : 2010-06-10
Age : 47
Location : santa ana,ca

PostSubject: Re: What is this?   Sat Sep 04, 2010 7:59 pm

my car was from texas 1983 some time in the 90s previos owner moved to california.It still has it.
Back to top Go down
elcano9

avatar

Car : 1987 AE86 Coupe
Posts : 178
Join date : 2010-08-08
Age : 28
Location : Puerto Rico

PostSubject: Re: What is this?   Sat Sep 04, 2010 8:25 pm

I got that thing removed and stored it in a box. Mine has no Cat converter and 2" piping so it was useless just hangin' there in mid air.
Back to top Go down
overdrive418

avatar

Car : 86 AE86 SR5 RWD
Posts : 298
Join date : 2010-06-28
Location : Florida

PostSubject: Re: What is this?   Fri Sep 10, 2010 8:43 am

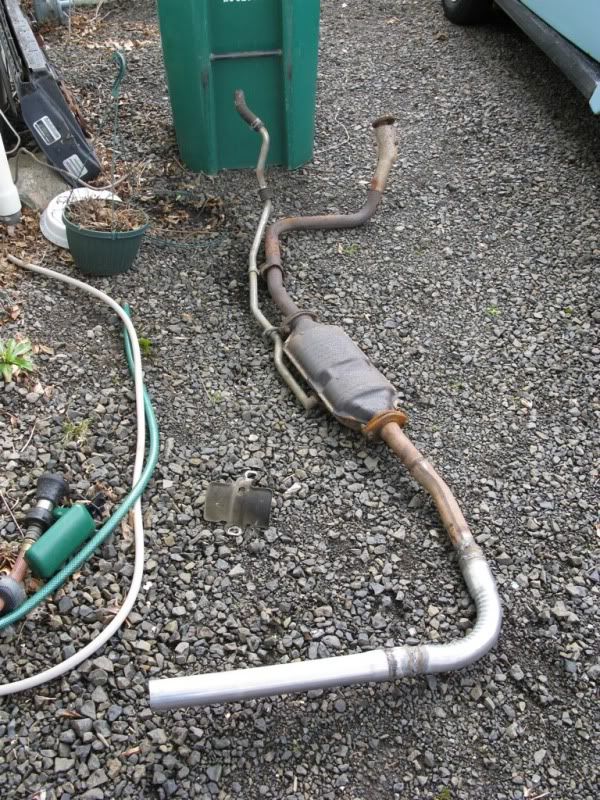

I'm guessing the smaller piping coming off the cat is where this hooks up? Thats what I have on my car but its not attached to anything so...

Back to top Go down
Lawnie420

avatar

Car : 1984 ae86 zenki sr5 coupe 4ac
Posts : 279
Join date : 2010-07-22
Age : 32
Location : Grand Junction Colorado

PostSubject: Re: What is this?   Fri Sep 10, 2010 1:12 pm

Cool my exhaust is still completly stock at this moment
Back to top Go down
Http://juggaloclownz.the-up.com
EricsFreeAE86

avatar

Car : 93 BMW 318is
Posts : 1914
Join date : 2009-05-27
Age : 35
Location : Chattanooga, TN

PostSubject: Re: What is this?   Tue Sep 14, 2010 9:21 pm

Yeah you can totally remove it. Just make sure you use something to plug the hole leftover. I used Liquid Steel - and I even passed state emissions test that includes a visual inspection!
Back to top Go down
overdrive418

avatar

Car : 86 AE86 SR5 RWD
Posts : 298
Join date : 2010-06-28
Location : Florida

PostSubject: Re: What is this?   Tue Sep 14, 2010 9:31 pm

I'm planning to completely redo the piping so it will all go, but for now I just have this extra pipe...hanging out...waitin' for high school girls or something! afro
Back to top Go down
Lawnie420

avatar

Car : 1984 ae86 zenki sr5 coupe 4ac
Posts : 279
Join date : 2010-07-22
Age : 32
Location : Grand Junction Colorado

PostSubject: Re: What is this?   Tue Sep 14, 2010 11:46 pm

overdrive418 wrote:
I'm planning to completely redo the piping so it will all go, but for now I just have this extra pipe...hanging out...waitin' for high school girls or something! afro
lmfao thats great
