 FS:CA:IHI turbo for 4ac

View previous topic View next topic Go down
AuthorMessage
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: FS:CA:IHI turbo for 4ac   Mon May 11, 2009 9:34 pm

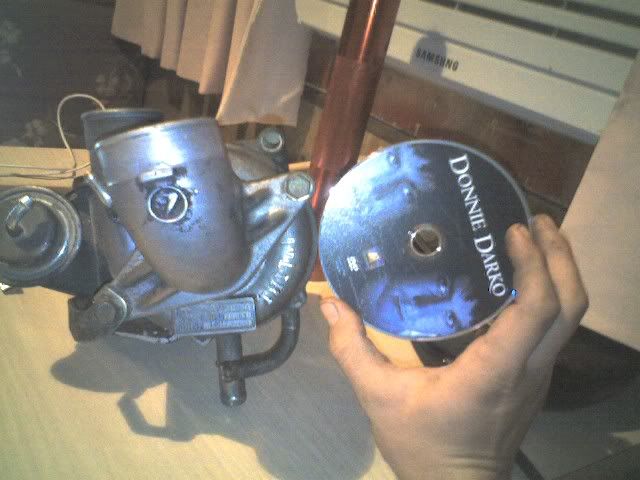

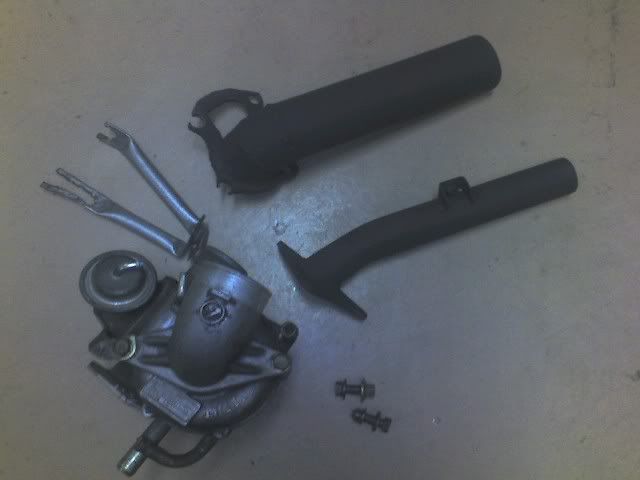

ihi turbo rhb25 i beleive it came off of amazda 626. minamal to no shaft play. flanges already made up and down pipealready made for 4ac. coes with mounting bracket. up n down pipe. nd turbo for ae86.200 obo +shippin

call me at 951 235 2455


Last edited by RaccoonRacing on Wed Jun 03, 2009 6:25 am; edited 2 times in total
Back to top Go down
84AE86

avatar

Posts : 13
Join date : 2009-05-07

PostSubject: Re: FS:CA:IHI turbo for 4ac   Tue May 12, 2009 8:15 am

Do you have any pics
Back to top Go down
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: Re: FS:CA:IHI turbo for 4ac   Sun May 31, 2009 4:58 am

B
U
M
P

PRice reduce!!!! Some one take this away for 200 plus shipping
Back to top Go down
projektlevin

avatar

Posts : 16
Join date : 2009-05-12
Age : 35
Location : Indio

PostSubject: Re: FS:CA:IHI turbo for 4ac   Mon Jun 01, 2009 2:07 pm

do you need to mod anything for this setup internals etc???
Back to top Go down
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: Re: FS:CA:IHI turbo for 4ac   Tue Jun 02, 2009 3:08 am

someone in fl ran his for four years with justtourqueing the head down another 20 lbs..supposed to spool at around 2200 rpm and full boost at aound 5400.
Back to top Go down
NP75
Admin


Car : AE86
Posts : 1116
Join date : 2009-04-12
Location : Nor Cal

PostSubject: Re: FS:CA:IHI turbo for 4ac   Tue Jun 02, 2009 9:51 am

I wonder how appropriate this turbo is for a 4AC. I had a Mazda MX6 Turbo with an IHI turbo, it would not start to produce boost untill 3000 RPM and thats with a 2.2 liter engine. It's only going to downhill with a 1.6 liter.
Back to top Go down
http://4ac-powered.forumotion.com
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: Re: FS:CA:IHI turbo for 4ac   Wed Jun 03, 2009 6:24 am

this thing looks real small for a 2.2...the inlet for the hot side is the same size as our oem downpipe
Back to top Go down
NP75
Admin


Car : AE86
Posts : 1116
Join date : 2009-04-12
Location : Nor Cal

PostSubject: Re: FS:CA:IHI turbo for 4ac   Wed Jun 03, 2009 10:23 am

I don't know what turbo you have there, but that number you give is the model used in the MX-6, 626, and Ford Probe 88-92 (all the same car) and you said that it came from a Mazda 626. Those years have a 2.2 liter engine, the previous model had a 2.0 liter, and the I think the next model had a something bigger. From my experience with my MX-6 I would not put the turbo that came out of those cars in a 4AC.


Last edited by NP75 on Fri Jun 05, 2009 10:28 am; edited 1 time in total
Back to top Go down
http://4ac-powered.forumotion.com
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: Re: FS:CA:IHI turbo for 4ac   Fri Jun 05, 2009 3:31 am

ill doulbe check it.... i was told it was off a 626 but the person ipurchased it from mybe didnt know.. so ill reearch it and let u know what its off of
Back to top Go down
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: Re: FS:CA:IHI turbo for 4ac   Sun Jun 07, 2009 6:57 am

ok so the turbo your talking about came on the 626 mx6 tbird etc and is labeled IHI RHB5-VJ11
mine that is for sale is a IHI RHB5-VF



49mm inlet
36mm outlet

44mm hot side inlet, three bolt flange
4 bolt exhaust side

Quote :
IHI RHB31
The smallest turbocharger we’ve seen fitted to a production engine is the IHI RHB31. This turbo is used on various Japanese Kei-class cars including Suzuki and Daihatsu.

We’re told this particular turbocharger comes from a Suzuki 660cc engine which, like all Kei-class engines, is limited to 47kW. Experience tells us this turbo can be wound up to more than 1.0 Bar of boost and about 75kW – but don’t expect it to last very long. These very small turbos aren’t particularly durable, despite having a water-cooled core.

The compressor inlet of this little ‘un is less than 30mm and the discharge nozzle measures 26mm diameter. A 2-bolt flange is used at the compressor inlet and discharge nozzle – there are no slip-over hose joints. The turbine wheel is fed exhaust gasses through a 24mm diameter passage in the triangular mounting flange. Three bolts attach the turbine to the exhaust manifold and four bolts connect the dump pipe.

The extremely compact dimensions of this turbocharger allow it to be mounted in very tight spaces. If you’re keen, you could probably squeeze a pair of these turbos under the bonnet of a N12 Nissan Pulsar/EXA turbo. Alternatively, you might have a small-to-medium size motorcycle you want to turbocharge...

IHI RHB5 VJ11
Another IHI manufactured turbocharger is the RHB5 VJ11, as fitted to the Mazda F2 2.2 litre engine. This engine is employed in the Mazda MX-6/626 and the Ford TX-5 cousin.

Despite displacing a considerable 2.2 litres, the F2 engine has a relatively low power output of 108kW. Not surprisingly, the F2’s turbocharger is quite small in comparison to other engines of similar capacity. We suggest the effective limit of this turbocharger is about 140kW.

The IHI RHB5 VJ11 draws induction air through a 45mm compressor inlet and blows it out through a 43mm discharge nozzle. A slip-over hose joint is used at each side of the compressor. Exhaust gasses enter the 44mm turbine passage and the 4-bolt mounting flange measures 74mm square. The dump pipe is a 5 bolter.

Note that the IHI RHB5 turbo is factory fitted to various engines and there are several subtle variations. These variations might come in handy if you want to mix and match IHI parts to create a unique compressor/turbine combo.

IHI RHF5 VJ26
We’re not 100 percent sure on the origin of this turbo but it appears to be from the Japanese-market Mazda Familia GT-R (essentially a STi or Evo equivalent of the Mazda’s Familia AWD turbo). The turbocharger is identified as an IHI RHF5 VJ26.

In factory form, the Familia GT-R’s 1.8 litre engine is rated at 154kW and the turbocharger is sized to give rally teams scope for more power. Two-hundred kilowatts is reliably within reach of this turbocharger. Note that the core features a ball bearing for enhanced boost response and strength. The core is also water-cooled.

The RHF5 VJ26’s compressor inlet is 45mm diameter and the discharge nozzle is 43mm (the same as the above RHB5 VJ11). We were unable to measure the diameter of the turbine passage because the exhaust manifold was still attached but we can tell you the 4-bolt flange is 74mm square. Note that this flange appears identical to the RHB5 turbo sampled above. The dump pipe also needs 4 bolts.

This is a great, medium-size roller bearing turbocharger. It’s a pity there aren’t many around.

FROM:AutoSpeed.com Used Tubo Info Pt. One
Back to top Go down
NP75
Admin


Car : AE86
Posts : 1116
Join date : 2009-04-12
Location : Nor Cal

PostSubject: Re: FS:CA:IHI turbo for 4ac   Sun Jun 07, 2009 3:30 pm

Yeah, if it's not a 626 turbo as originally listed then what I said does not apply. It seems that the VF series are mostly off of various 80's and 90's Subarus. There should be a one or two digit number that goes after the VF that should from which one should be able what Subaru it came on originally. I would want to know that to see what the power characteristics of the original engine were if I were thinking about buying this.
Back to top Go down
http://4ac-powered.forumotion.com
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: Re: FS:CA:IHI turbo for 4ac   Mon Jun 08, 2009 2:08 am

sorry i had to drag the turbo out of storage. so the stamp reads

Turbo Spec.VF 48803
Serial No. RHB5 29063A
Parts No. 14412 AA031
Back to top Go down
RaccoonRacing

avatar

Car : Many
Posts : 89
Join date : 2009-05-08
Age : 28
Location : Riverside, CA

PostSubject: Re: FS:CA:IHI turbo for 4ac   Mon Jun 08, 2009 2:14 am

Quote :
mx_masta is correct. VF48's and most any of the VF's that you find on eBay that are still RHB5 are going to be from the 1.8L engine. The exception is ordering from outside the US or buying the 30 series which are RHF5 or RHF55

Ok is off of a 1.8 subie
Back to top Go down
NP75
Admin


Car : AE86
Posts : 1116
Join date : 2009-04-12
Location : Nor Cal

PostSubject: Re: FS:CA:IHI turbo for 4ac   Mon Jun 08, 2009 12:00 pm

That looks like a reasonable candidate.
